Advanced Braiding of Implantable Medical Devices

In broad terms, the process of braiding involves three or more individual strands of material, which form an interlaced pattern by being placed diagonally to the product axis.  However there is a little bit more to the development of an ideal implantable braided device that offers unique physical and mechanical properties. The following provides some insights into the braid development process.

The Braid Development Process:

Step 1: Material Selection

Step 2: Selection of Yarns & Quantity

Step 3: Dimensional Specifications

Step 4: Braid Configuration Specification

Step 5: Finishing & Post-Processing

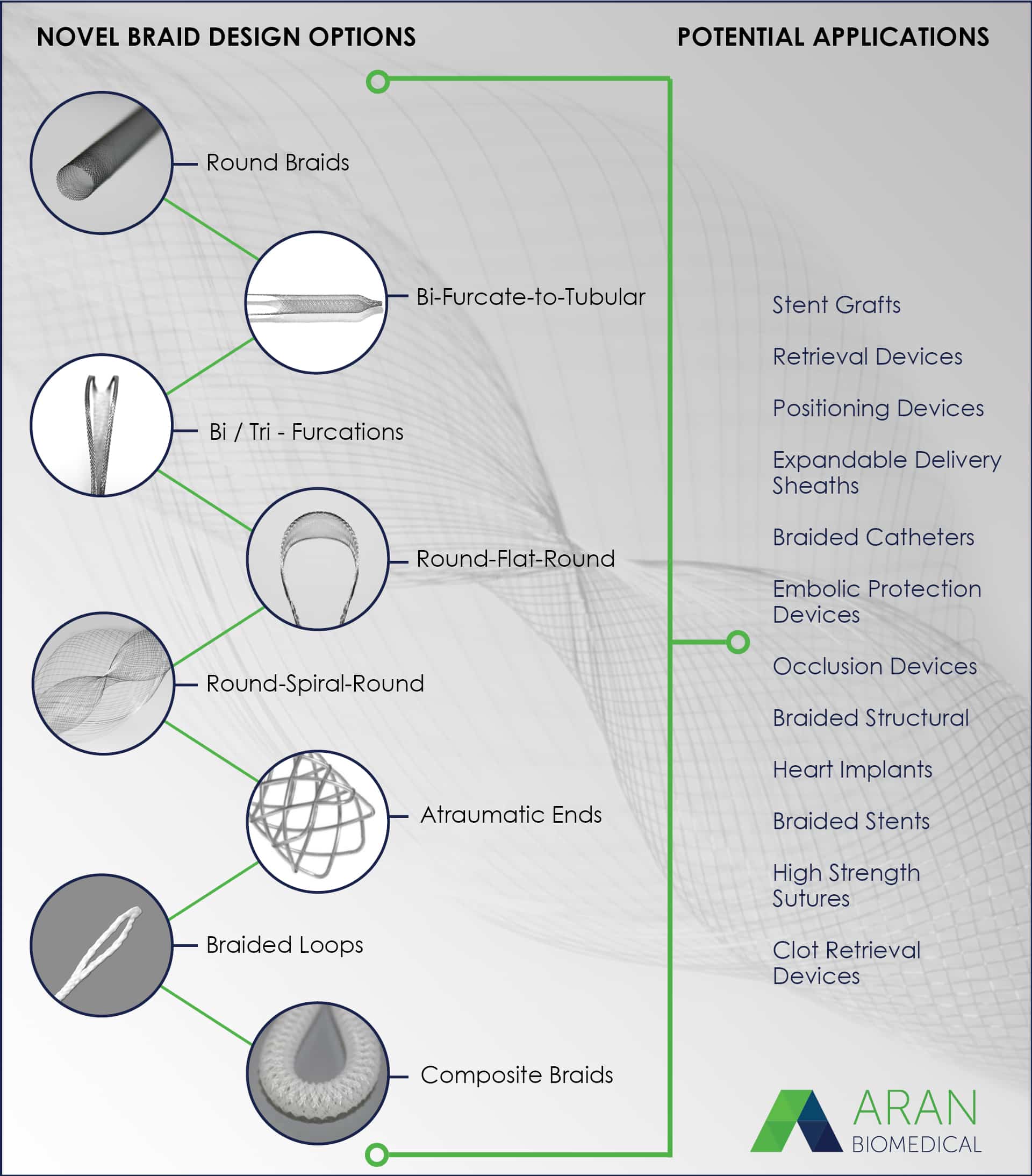

Advanced Braiding Structures for Implantable Medical Devices

1. Material Selection:

The material used in a braided device is one of the numerous variables that affect the physical and mechanical properties of the braid. The wires or yarns used in braided medical devices include a wide range of biomaterials, such as:

  • Polymer Yarns: UHMWPE, PET, Nylon, Polypropylene, PTFE, LCP
  • Resorbable Polymers: PLLA, PLGA, PDO
  • Metallic wires: Nitinol, Stainless Steel, Cobalt Chromium, DFT

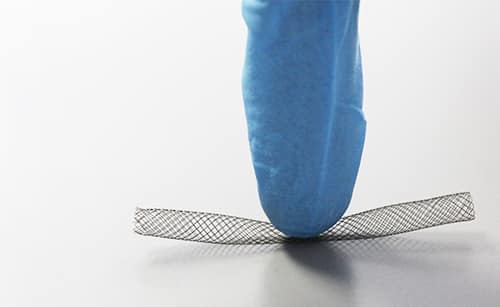

2. Mechanical & Physical Material Property Considerations

  • Tissue in-growth
  • Material Compatibility
  • Degradation Profile
  • Toughness
  • Sterilization Method
  • MRI Compatibility
  • Biocompatibility
  • Strength
  • Compliance

3. Dimensional Specifications

Quantity & Size of Wire/ Yarn Ends:

There is a direct correlation between wire size and number of ends in determining braid dimensions, such as wall thickness and crimp profile. Initially the size & number of wire or yarn ends will typically be determined according to target indication and preferred size of the delivery system. Other factors such as crimp-ability, preferred braid density and expected mechanical forces will also be important considerations, ultimately determined during the braid design process.

Primary dimensional considerations:

  • Finished Device Dimensions (deployed dimensions, post shape setting)
  • Braid Dimensions (pre-heat setting)
  • Crimp Profile or Delivery Dimensions

The latter takes into account foreshortening or actuation that occurs in the braid, driven by braid angle, along with the number of ends etc.

4. Braid Configuration:

Once the material has been selected, the number of ends agreed and the dimensions defined, the next factor to determine will be the braid angle, which in turn impact the pics per inch (PPI).

Finally, the braid design is determined by how the strands pass alternately over and under each other, which is always in opposite directions. The strands can be braided in three distinct patterns, namely: 1 x 1, 1 x 2, and 2 x 2.

Through characterisation, mechanical characteristics can be determined and the braid optimised.  The following provides some high level rules in optimising a braid, however its important to remember that these can be affected by subsequent shape setting:

  • Number of carriers ends – Affects the rigidity of the braid
  • Braid angles (PPI)
    – A high braid angle increases radial strength
    – Low braid increase actuation length during crimping
  • Torsional strength is linked to material stiffness, braid density
  • Kink Resistance is correllated to radial strength & material stiffness

5. Post-Processing for Implantable Braids

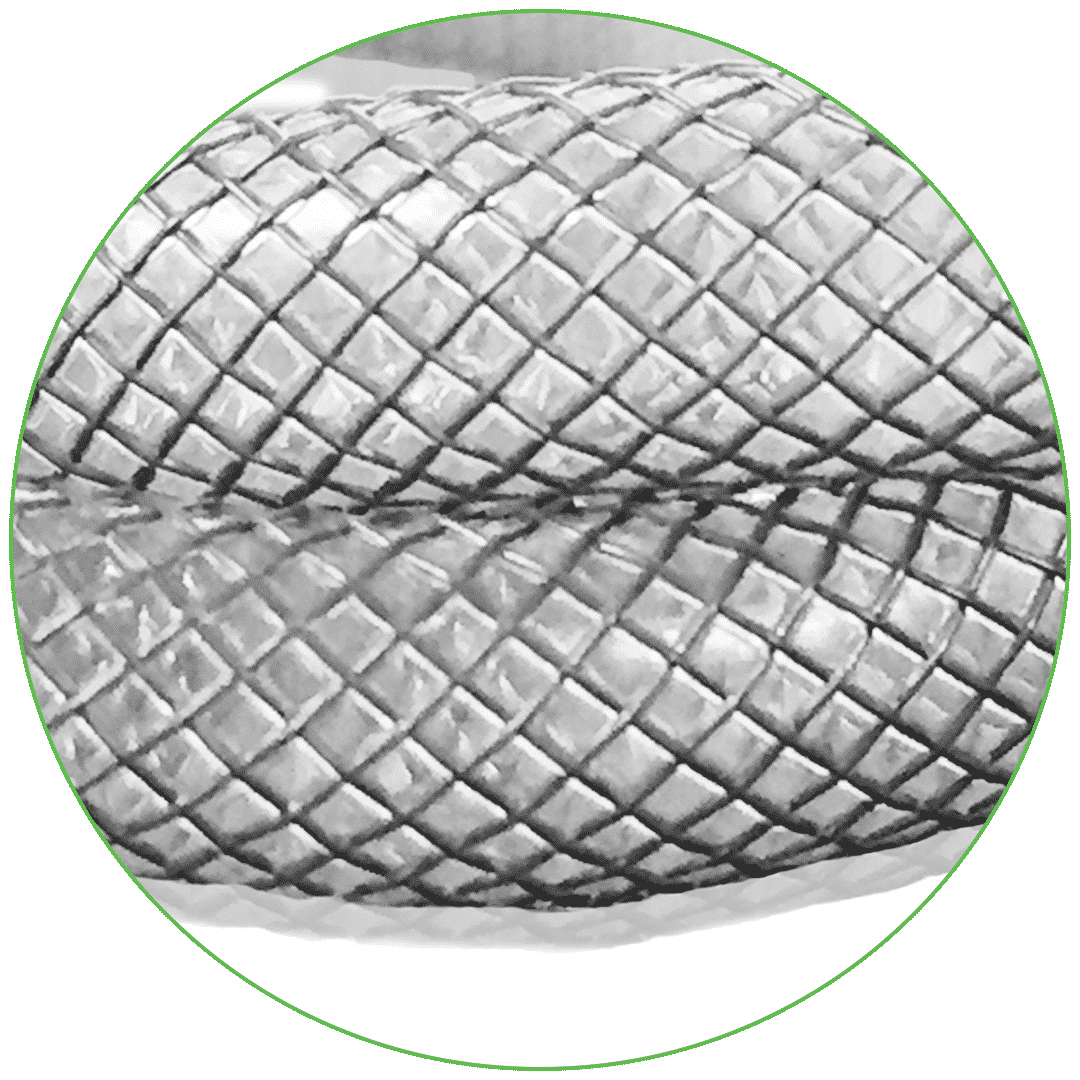

High Precision Elastomeric Coatings are often added to the braid to create an impermeable barrier. The barrier can also eliminate tissue adhesion to an implant, or contain material, such as thrombus, emboli or ureteral stone fragments. Thickness can vary, from as low as 5μm.

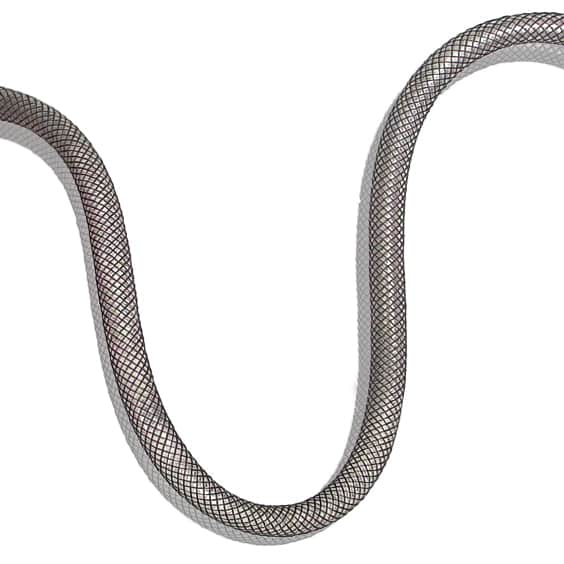

Elastomeric Braid Coating

Wire Welding of Braids is a process employed to either secure wire ends or facilitate subsequent braid assembly. In securing the ends, wires can be welded together and possibly secured to a marker band or looped to create an atraumatic end.

Wire welded Nitinol Braid

Electropolishing smooths and polishes the surface of metal braids, resulting in a microscopically featureless surface. This improves the functionality of the device, and most importantly, improves bio-compatibility, while reducing the risk of corrosion.

Electropolished nitinol braid

Secondary Shape Setting is a technique used to achieve more complex shapes, such as domes, discs and prolapsed designs. These dimensional changes, significantly alter the mechanical properties of the braid, which can help reduce implant migration for example.

Shape set Nitinol Occlusion Devices
